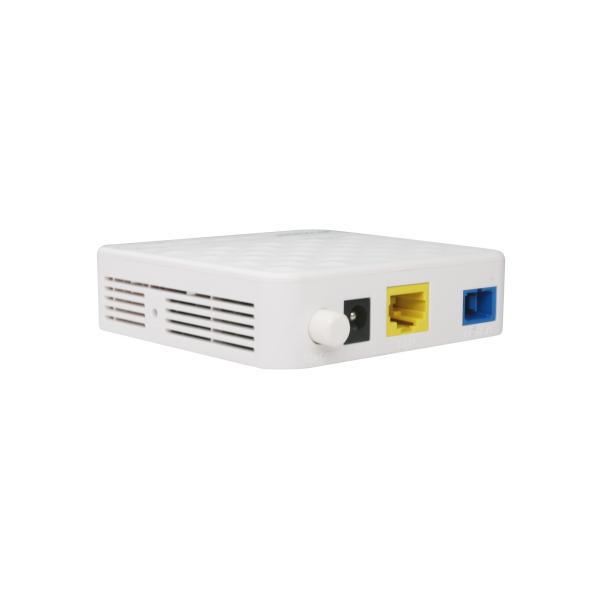

FTTP/FTTH Solution 1GE Xpon Gpon Onu Device , Fiber Optic Gpon Dual Mode

Product Categories
Shenzhen Optfocus Technology Co., Ltd.
Contact Now

FTTP/FTTH Solution 1GE Xpon Gpon Onu Device , Fiber Optic Gpon Dual Mode

Brand Name : OPTFOCUS

Model Number : OFSX611

Certification : ISO9001

Place of Origin : China

MOQ : 500/pcs

Price : 9.5 USD/PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30000 pcs/month

Delivery Time : 7-14 working days after payment

Packaging Details : Box/Carton

Wavelength : TX 1310nm，RX 1490nm

PON : XPON port, GPON EPON GEPON Auto adaptive

Fiber connector : SC/UPC connector

DC supply interface : input＋12V 1A

Power : ≤8W

Weight : 0.35Kg（mainframe）

Contact Now

FTTH/FTTP solution Dual Mode 1GE Xpon Onu/ont

Description:

OFSX622-VW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.

Tech parameters description

Up-link interface

1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC

Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector
Down-link data interface 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 7 pcs
DC supply interface input＋12V 1A
Power ≤8W
Operating temperature -5～+55℃
Humidity 10～85%(non-condensation)
Storage temperature -30～+70℃
Dimension(MM) 167*119*32mm(mainframe)
Weight 0.35Kg(mainframe)

Tech features description
antenna

2T2R Mode

5DBI Gain ,Frequency:2.4G
rate 300Mbps PHY rate
encryption methods WFA,WPA,WPA2,WAPI

  • Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
  • Support China Telecom GPON CTC3.1 standard and expand OAM
  • Support triple churning encryption request
  • Support DBA reporting mechanism request
  • Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
  • Support the remote upgrade and download
  • Support status detection and fault report
  • Support to save configured parameters if power down
  • Support to configure the work mode at the user port
  • Support MDI-MDIX automatic-detection at the user port.
  • Support data encryption and decryption
  • Support access authentication based on serial number
  • Support access authentication based on MAC address
  • Support 802.1Q VLAN
  • Support rich QinQ VLAN functions and IGMP Snooping
  • Support traffic rule to modify the related priority.
  • Support IEEE802.11n 2T2R WiFi function
  • Support to restore the factory settings
  • Support the remote reset and reboot
  • Support dying gasp outage alarm
  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
